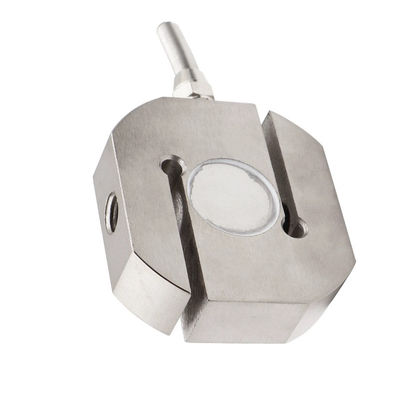

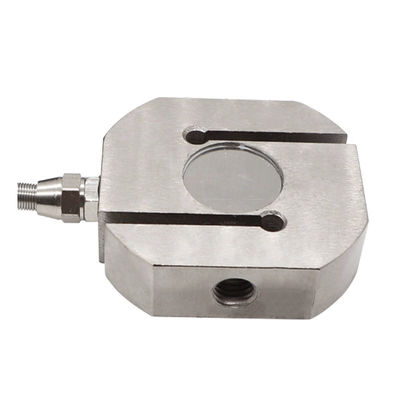

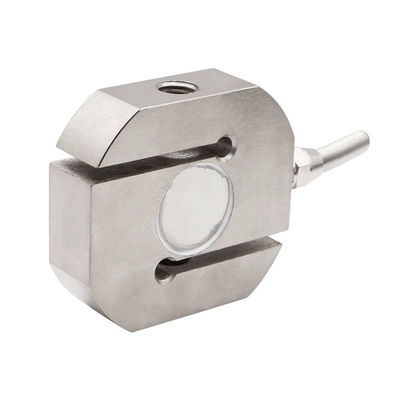

ODM Supported UNIVO UBWP305Y Robotic Arm Tension and Compression Weighing Electronic Scale Gravity Sensor
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | UNIVO |
| Model Number | UBWP305 |
| Price | $66.00 - $82.00/sets |
| Packaging Details | Brown cardboard boxes are packaged with bubble bags inside to wrap the product. |
| Supply Ability | 1000 Piece/Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1 Year | Type | Tension And Compression Weighing Force Sensor |
|---|---|---|---|
| Customized Support | OEM, ODM | Rated Load | 0.2~5t |
| Sensitivity | 2.0mV/V |
Product Description
Product Description
Hook scale and belt scale； Hopper scale, storage scale； Material tank; Material mechanics testing machine； labor safety testing equipment, etc；

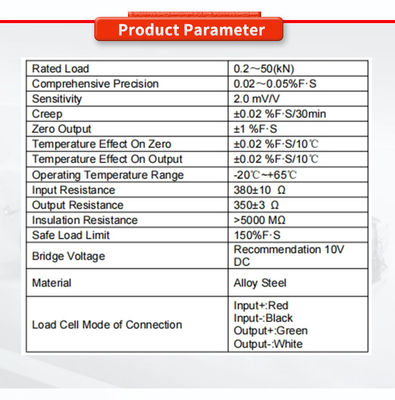

Rated Load | 0.2～50(kN) |
Comprehensive Precision | 0.02～0.05%F·S |
Sensitivity | 2.0 mV/V |
Creep | ±0.02 %F·S/30min |
Zero Output | ±1 %F·S |
Temperature Effect On Zero | ±0.02 %F·S/10℃ |
Temperature Effect On Output | ±0.02 %F·S/10℃ |
Operating Temperature Range | -20℃~+65℃ |
Input Resistance | 380±10 Ω |
Output Resistance | 350±3 Ω |
Insulation Resistance | >5000 MΩ |
Safe Load Limit | 150%F·S |
Bridge Voltage | Recommendation 10V DC |
Material | Alloy Steel |
Load Cell Mode of Connection | Input+:Red Input-:Black Output+:Green Output-:White |
Why Choose Us

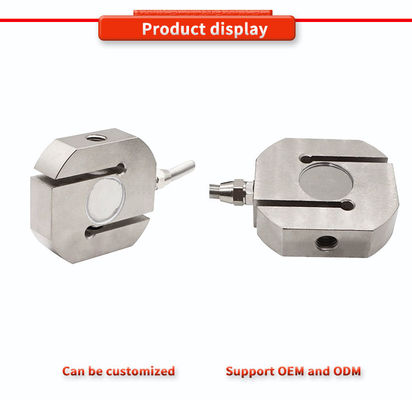

Details Images
Company Profile
Product packaging
FAQ
Q1. What are your packaging conditions? Answer: Usually, brown cardboard boxes are packaged with bubble bags inside to wrap the product. Q2. How long is your quotation valid? Answer: Our quotation is valid for 30 days. Q3. How is your delivery time? Answer: General standard type: 7-15 working days after confirming the order based on the quantity; Non standard types require communication and confirmation with us. Q4. What is your minimum order quantity? Answer: According to different product types, the cost varies and the minimum order quantity also varies. Please contact us for confirmation. Q5. How do you ensure good product quality? Answer: We have a complete quality control system; All of our products undergo a comprehensive inspection by the quality department before being shipped to customers. Q6. Can you produce based on samples? Answer: Yes, we can produce according to your samples or technical drawings. Q7. Can you accept OEM brands? Answer: Yes, we can accept OEM brands. Q8. How long is the warranty period for your product? Answer: Lifetime maintenance, 24 months of non human damage (calculated from the time of receipt), with free replacement if there are quality issues (damage caused by human factors, overload use, etc. are not within the warranty scope); Only material fees will be charged beyond the warranty period. Accessories and gifts are not covered by the warranty. Q9. How to deliver? Answer: For your convenience, we can send goods through DHL, TNT, UPS, SF, EMS, etc. for prepaid shipping, or use your own courier account to collect shipping fees. Q10. Can I take the sample? Answer: You can contact us to help you get the samples as soon as possible.
Purchase guide To recommend you the most suitable sensor, please tell us below information. 1. Working temperature: -40~+125 °C ? 2. Test range? 3. Output: 4-20mA , RS485 or others? 4. Screw: G1/4, 1/4NPT, R1/4, M20*1.5? 5. Electrical connection: DIN43650, Packard, Direct lead? 6. Order quantity: ?
