UBPR-03Y Displacement Measuring Sensor Construction Machinery Ultimate Tool
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | UNIVO |
| Model Number | UBPR-03 |
| Price | $118.00 - $163.00/sets |
| Packaging Details | Brown cardboard boxes are packaged with bubble bags inside to wrap the product. |
| Supply Ability | 1000 Piece/Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Grade | Industrial | Warranty | 1 Year |
|---|---|---|---|
| Customized Support | OEM, ODM | Range | 0-1500mm/0-1000mm |
| Power Supply Voltage | DC5V, DC5-24V;DC12V,DC24V | ||
| High Light | UBPR-03Y Displacement Measuring Sensor,Ultimate Tool Displacement Measuring Sensor,Construction Displacement Measuring Sensor |
||
Product Description
Product Description

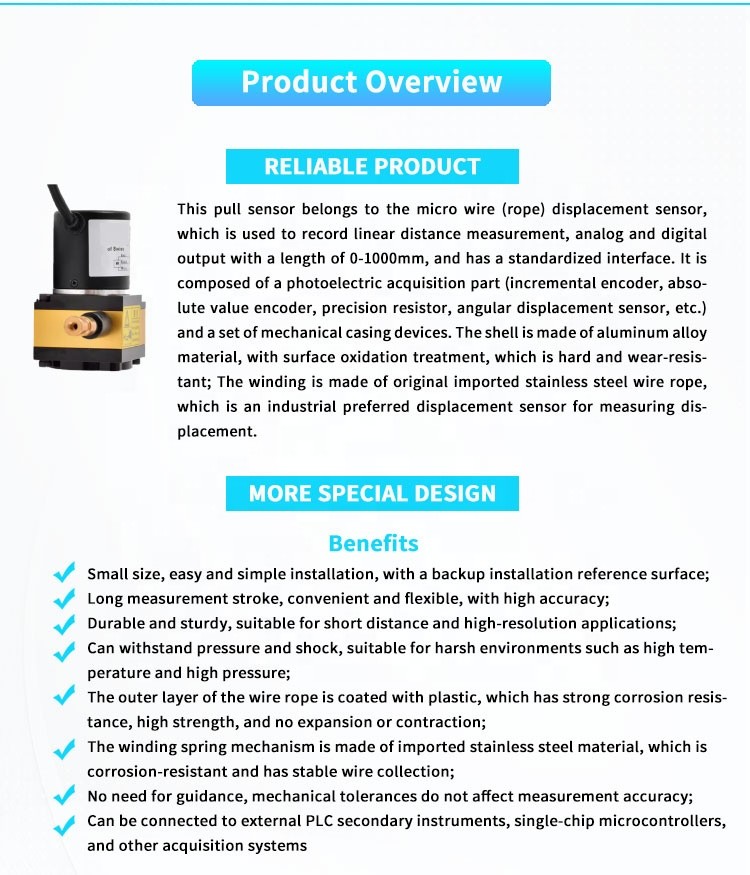

Small size, easy and simple installation, with a backup installation
reference surface;
Long measurement stroke, convenient and flexible, with high
accuracy;
Durable and sturdy, suitable for short distance and high-resolution
applications;
Can withstand pressure and shock, suitable for harsh environments
such as high temperature and high pressure;
The outer layer of the wire rope is coated with plastic, which has
strong corrosion resistance, high strength, and no expansion or
contraction;
The winding spring mechanism is made of imported stainless steel
material, which is corrosion-resistant and has stable wire collection;
No need for guidance, mechanical tolerances do not affect
measurement accuracy;
Can be connected to external PLC secondary instruments, single-
chip microcontrollers, and other acquisition systems.
reference surface;
Long measurement stroke, convenient and flexible, with high
accuracy;
Durable and sturdy, suitable for short distance and high-resolution
applications;
Can withstand pressure and shock, suitable for harsh environments
such as high temperature and high pressure;
The outer layer of the wire rope is coated with plastic, which has
strong corrosion resistance, high strength, and no expansion or
contraction;
The winding spring mechanism is made of imported stainless steel
material, which is corrosion-resistant and has stable wire collection;
No need for guidance, mechanical tolerances do not affect
measurement accuracy;
Can be connected to external PLC secondary instruments, single-
chip microcontrollers, and other acquisition systems.

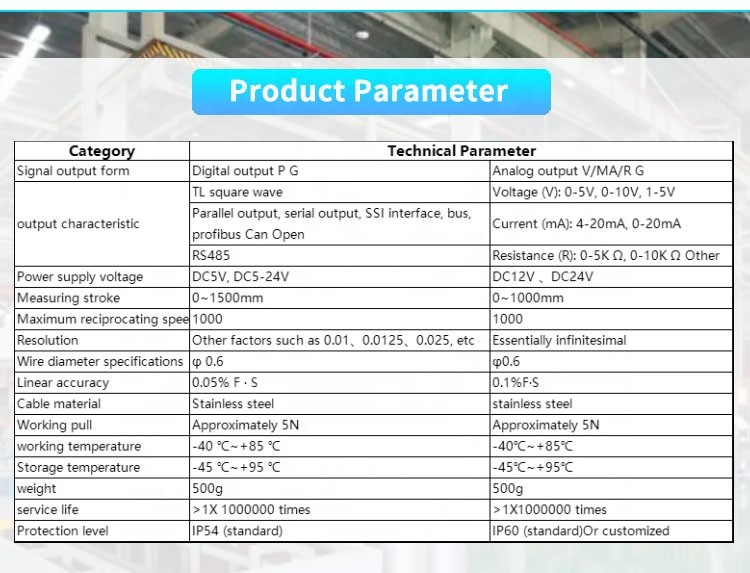

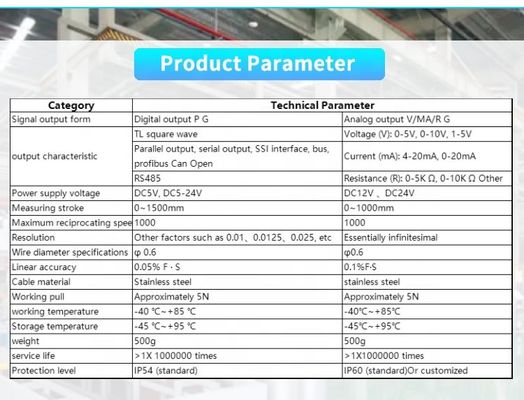

| UBPR-03-P | Measurement range | resolution | Output characteristic | power supply voltage | increment type |
| UBPR-03-V/MAR | Measurement range | essentially infinitesimal | Output characteristic | power supply voltage | mixed type |
| UBPR-03G | Measurement range | resolution | Output characteristic | power supply voltage | Absolute value type |
Product Selection
·Resistance output type: 1K Ω 5K Ω 10K Ω 20k Ω ·Voltage output type: external module or internal module: 0-5V 0-10V ·Current output type: external module or internal module: 4-20mA 1-20mA 0-20mA two-wire three-wire system This sensor is an absolute position measurement type used for direct measurement of position and length in regulating and measuring systems, outputting current and voltage signals. It can also be converted into standard 5V~0V, 10~0V, or 20~4MA direct current signals through built-in or external V/I conversion modules. 20-0mA, 20-1mA can be customized, and the current signal can meet the requirements of long-distance transmission control. ·Digital output type: RS232, RS485. Standard Modbus Default shipping standard resistive voltage signal, power supply 5V or 10V, output 0-5V or 0-10V. If you need to supply 12V/24V power and output 0-5V, 0-10V, 4-20mA, you need to send a module. Please leave a message or consult customer service when placing an order. Thank you!
Details Images
Why Choose Us
Company Profile
Product packaging
FAQ
Q1. What are your packaging conditions? Answer: Usually, brown cardboard boxes are packaged with bubble bags inside to wrap the product. Q2. How long is your quotation valid? Answer: Our quotation is valid for 30 days. Q3. How is your delivery time? Answer: General standard type: 7-15 working days after confirming the order based on the quantity; Non standard types require communication and confirmation with us. Q4. What is your minimum order quantity? Answer: According to different product types, the cost varies and the minimum order quantity also varies. Please contact us for confirmation. Q5. How do you ensure good product quality? Answer: We have a complete quality control system; All of our products undergo a comprehensive inspection by the quality department before being shipped to customers. Q6. Can you produce based on samples? Answer: Yes, we can produce according to your samples or technical drawings. Q7. Can you accept OEM brands? Answer: Yes, we can accept OEM brands. Q8. How long is the warranty period for your product? Answer: Lifetime maintenance, 24 months of non human damage (calculated from the time of receipt), with free replacement if there are quality issues (damage caused by human factors, overload use, etc. are not within the warranty scope); Only material fees will be charged beyond the warranty period. Accessories and gifts are not covered by the warranty. Q9. How to deliver? Answer: For your convenience, we can send goods through DHL, TNT, UPS, SF, EMS, etc. for prepaid shipping, or use your own courier account to collect shipping fees. Q10. Can I take the sample? Answer: You can contact us to help you get the samples as soon as possible.
Purchase guide To recommend you the most suitable sensor, please tell us below information. 1. Working temperature: -40~+125 °C ? 2. Test range? 3. Output: 4-20mA , RS485 or others? 4. Screw: G1/4, 1/4NPT, R1/4, M20*1.5? 5. Electrical connection: DIN43650, Packard, Direct lead? 6. Order quantity: ?
