UM-375-250 LVDT High Precision Micro Linear Displacement Sensor Mounting Type LVDT
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | Univo |
| Model Number | UBMD-375-250 |
| Minimum Order Quantity | 1 |
| Price | $488.00/pieces 1-4 pieces |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Rugged 3/8 Inch Stainless Steel Housing | Series | UBMD-375 |
|---|---|---|---|
| Mounting Type | - | Description | Body Welght(grams) 3.0 |
| Type | Linear Displacement Sensor | Usage | Displacement Measurement |
| Theory | Linear | Output | Volt |
| Sensitivity(mV/V/.001 Inch) | 3.5 | Nominal Range(mm) | ±6.25mm |
| High Light | um-375-250 lvdt displacement sensor,mounting type displacement sensor,lvdt displacement sensor |
||
Product Description
Products Description
Product Paramenters
| Model | UBMD-375- | UBMD-375- | UBMD-375- | UBMD-375- | UBMD-375- | UBMD-375- | UBMD-375- |
| parameter | 25 | 50 | 100 | 250 | 500 | 1000 | 2000 |
| Range (inches) | ±0.025 | ±0.050 | ±0.100 | ±0.250 | ±0.500 | ±1.00 | ±2.00 |
| Range (mm) | ±0.63 | ±1.25 | ±2.50 | ±6.25 | ±12.5 | ±25.4 | ±50.8 |
| Sensitivity (MV/V/. 001 inches) | 3.5 | 1.7 | 1.8 | 2.5 | 1.7 | 0.75 | 0.5 |
| Sensitivity (mV/V/mm) | 138 | 67 | 71 | 98 | 67 | 30 | 19.7 |
| Primary impedance (Ω) | 95 | 345 | 345 | 505 | 130 | 240 | 540 |

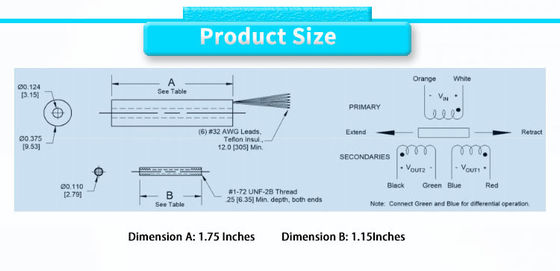

| Size "A" (inches) | 0.45 | 0.75 | 1 | 1.75 | 3.3 | 5.5 | 9.95 |
| Size "B" (inches) | 0.4 | 0.6 | 0.65 | 1.15 | 2 | 3 | 5.5 |
| Main body weight (grams) | 3 | 6 | 6 | 11.5 | 18 | 28 | 56 |
| Iron core weight (grams) | 0.3 | 0.5 | 0.5 | 1 | 1.6 | 2.6 | 5.2 |
Why Choose Us
Company Profile
Our Advantages
Product packaging
FAQ
Q1. What are your packaging conditions?
Answer: Usually, brown cardboard boxes are packaged with bubble bags inside to wrap the
product.
product.
Q2. How long is your quotation valid? Answer: Our quotation is valid for 30 days.
Q3. How is your delivery time?
Answer:General standard type: 7-15 working days after confirming the order based on the quantity; Non standard types require communication and confirmation with us.
Q4. What is your minimum order quantity?
Answer: According to different product types, the cost varies and the minimum order quantity also varies. Please contact us for confirmation.
Q5. How do you ensure good product quality?
Answer: We have a complete quality control system; All of our products undergo a comprehensive inspection by the quality department before being shipped to customers.
Q6. Can you produce based on samples?
Answer: Yes, we can produce according to your samples or technical drawings.
Q7. Can you accept OEM brands? Answer: Yes, we can accept OEM brands.
Q8. How long is the warranty period for your product?
Answer: Lifetime maintenance, 24 months of non human damage (calculated from the time of receipt), with free replacement if there are quality issues (damage caused by human factors, overload use, etc. are not within the warranty scope); Only material fees will be charged beyond the warranty period. Accessories and gifts are not covered by the warranty.
Q9.How to deliver?
Answer: For your convenience, we can send goods through DHL, TNT, UPS, SF, EMS, etc. for prepaid shipping, or useyour own courier account to collect shipping fees.
Q10. Can I take the sample?
Answer: You can contact us to help you get the samples as soon as possible.
Purchase guide
Purchase guide
To recommend you the most suitable sensor, please tell us below information.
1. Working temperature: -40~+125 °C ?
2. Test range?
2. Test range?
3. Output: 4-20mA , RS485 or others?
4. Screw: G1/4, 1/4NPT, R1/4, M20*1.5?
5. Electrical connection: DIN43650,Packard, Direct lead?
6. Order quantity: ?
