UBWP309Y Mechanical Arm Force Measurement Tension Compression Weighing Sensor

Place of Origin China
Brand Name UNIVO
Model Number UBWP309
Price $160.00 - $260.00/sets
Packaging Details Brown cardboard boxes are packaged with bubble bags inside to wrap the product.
Supply Ability 1000 Piece/Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty 1 Year Type Force Sensor
Customized Support OEM, ODM Rated Load 1~100(kN)
Sensitivity 2.0mV/V
High Light

UBWP309Y Compression Weighing Sensor

,

Force Measurement Compression Weighing Sensor

,

Mechanical Compression Weighing Sensor

Leave a Message
Product Description
Product Description

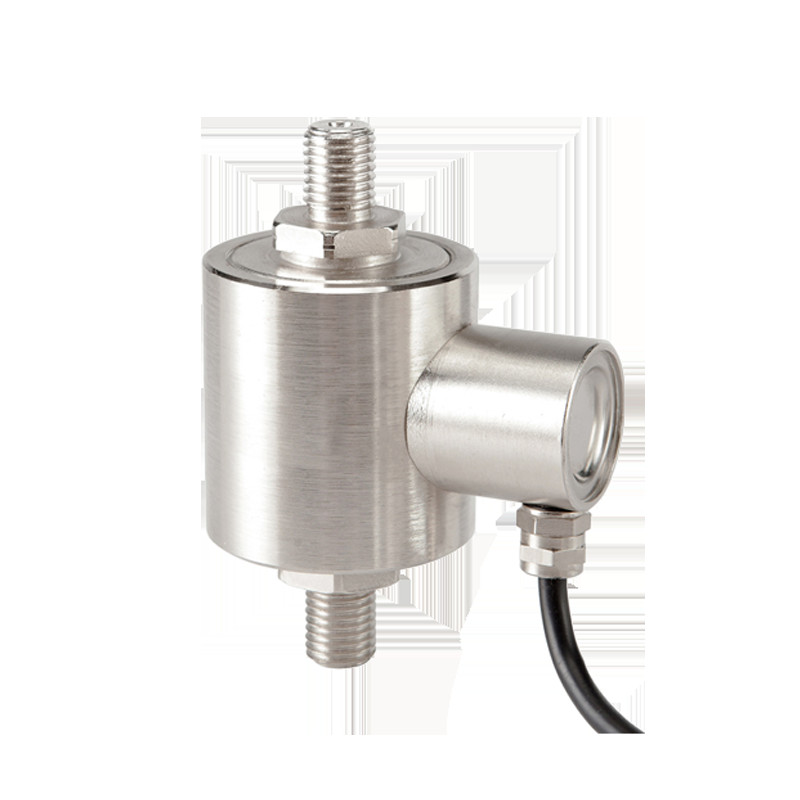

UBWP309Y Mechanical Arm Force Measurement Tension Compression Weighing Sensor 0

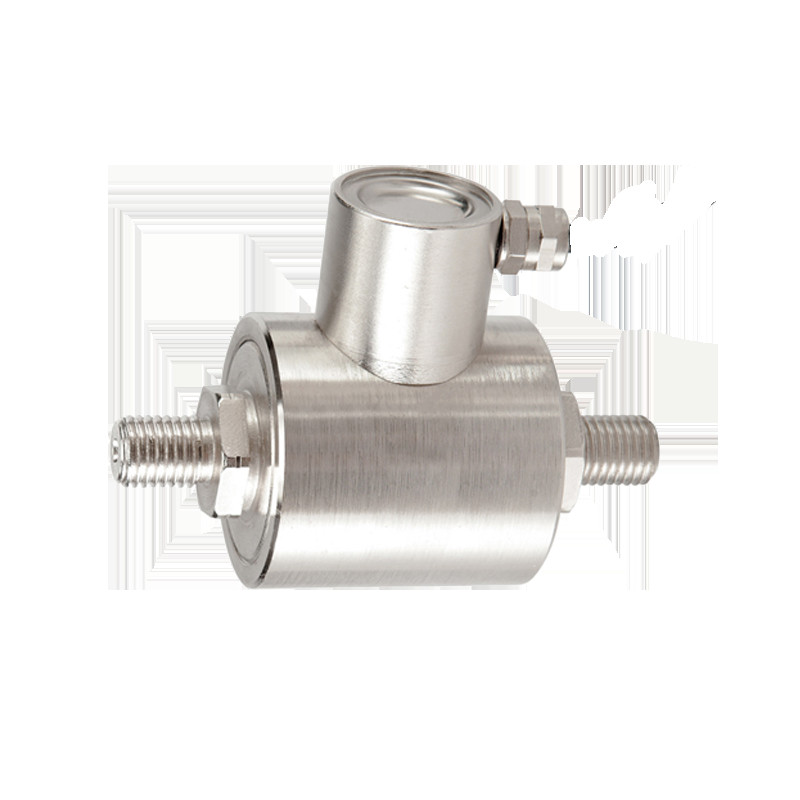

UBWP309Y Mechanical Arm Force Measurement Tension Compression Weighing Sensor 1
UBWP309Y Mechanical Arm Force Measurement Tension Compression Weighing Sensor 2

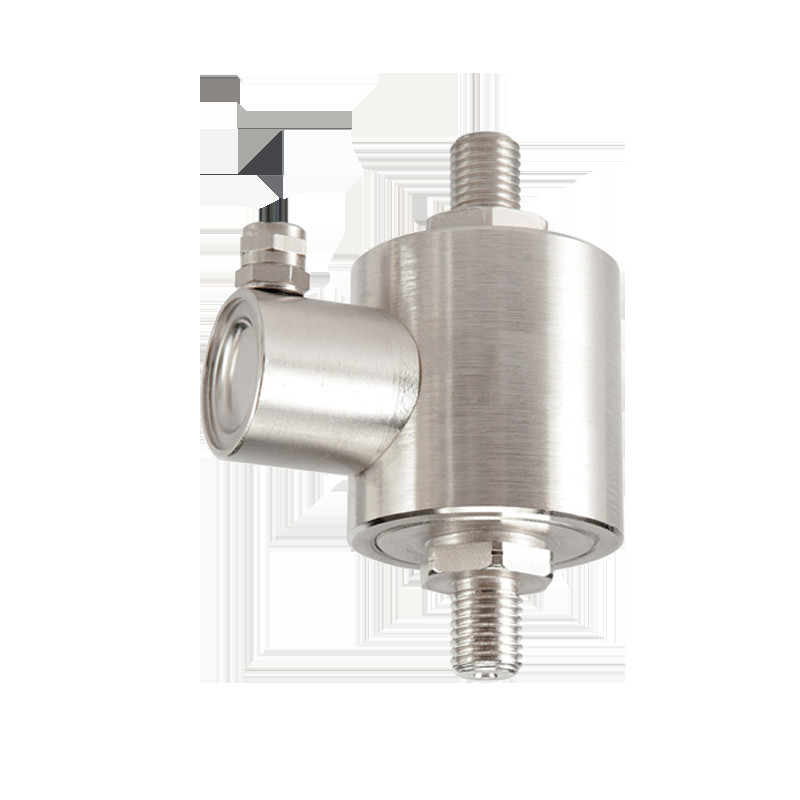

UBWP309Y Mechanical Arm Force Measurement Tension Compression Weighing Sensor 3
Hook scale and belt scale; Hopper scale, storage scale; Material tank; Material mechanics testing machine; labor safety testing equipment, etc;
UBWP309Y Mechanical Arm Force Measurement Tension Compression Weighing Sensor 4

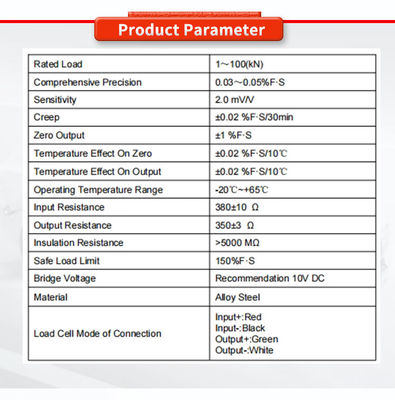

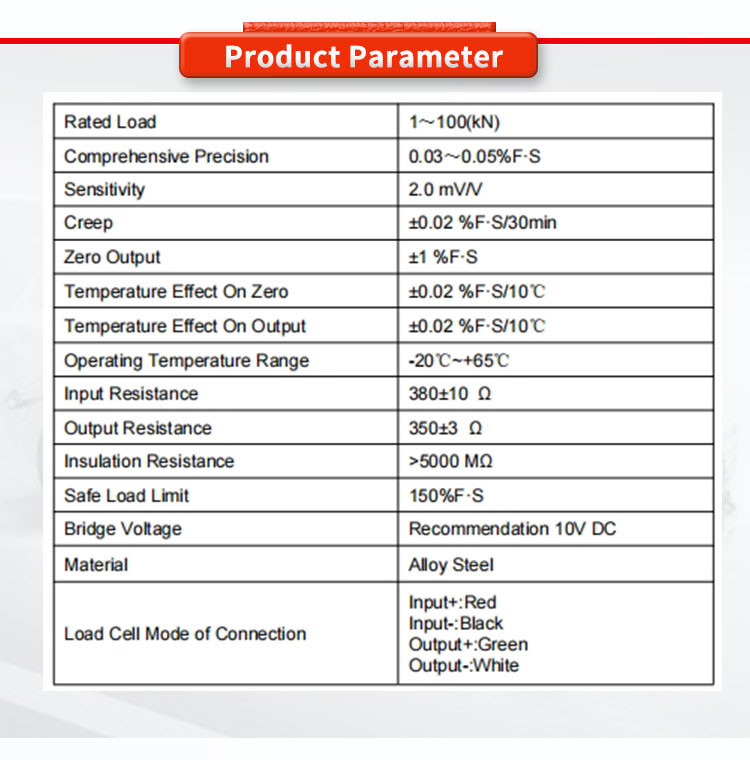

Rated Load
1~100(kN)
Comprehensive Precision
0.03~0.05%F·S
Sensitivity
2.0 mV/V
Creep
±0.02 %F·S/30min
Zero Output
±1 %F·S
Temperature Effect On Zero
±0.02 %F·S/10℃
Temperature Effect On Output
±0.02 %F·S/10℃
Operating Temperature Range
-20℃~+65℃
Input Resistance
380±10Ω
Output Resistance
350±3Ω
Insulation Resistance
>5000 MΩ
Safe Load Limit
150%F·S
Bridge Voltage
Recommendation 10V DC
Material
Alloy Steel
Load Cell Mode of Connection
Input+:Red
Input-:Black
Output+:Green
Output-:White

Why Choose Us
UBWP309Y Mechanical Arm Force Measurement Tension Compression Weighing Sensor 5
Details Images
UBWP309Y Mechanical Arm Force Measurement Tension Compression Weighing Sensor 6
Company Profile
UBWP309Y Mechanical Arm Force Measurement Tension Compression Weighing Sensor 7
UBWP309Y Mechanical Arm Force Measurement Tension Compression Weighing Sensor 8
UBWP309Y Mechanical Arm Force Measurement Tension Compression Weighing Sensor 9
UBWP309Y Mechanical Arm Force Measurement Tension Compression Weighing Sensor 10
Product packaging
UBWP309Y Mechanical Arm Force Measurement Tension Compression Weighing Sensor 11
FAQ
Q1. What are your packaging conditions? Answer: Usually, brown cardboard boxes are packaged with bubble bags inside to wrap the product. Q2. How long is your quotation valid? Answer: Our quotation is valid for 30 days. Q3. How is your delivery time? Answer: General standard type: 7-15 working days after confirming the order based on the quantity; Non standard types require communication and confirmation with us. Q4. What is your minimum order quantity? Answer: According to different product types, the cost varies and the minimum order quantity also varies. Please contact us for confirmation. Q5. How do you ensure good product quality? Answer: We have a complete quality control system; All of our products undergo a comprehensive inspection by the quality department before being shipped to customers. Q6. Can you produce based on samples? Answer: Yes, we can produce according to your samples or technical drawings. Q7. Can you accept OEM brands? Answer: Yes, we can accept OEM brands. Q8. How long is the warranty period for your product? Answer: Lifetime maintenance, 24 months of non human damage (calculated from the time of receipt), with free replacement if there are quality issues (damage caused by human factors, overload use, etc. are not within the warranty scope); Only material fees will be charged beyond the warranty period. Accessories and gifts are not covered by the warranty. Q9. How to deliver? Answer: For your convenience, we can send goods through DHL, TNT, UPS, SF, EMS, etc. for prepaid shipping, or use your own courier account to collect shipping fees. Q10. Can I take the sample? Answer: You can contact us to help you get the samples as soon as possible.

Purchase guide To recommend you the most suitable sensor, please tell us below information. 1. Working temperature: -40~+125 °C ? 2. Test range? 3. Output: 4-20mA , RS485 or others? 4. Screw: G1/4, 1/4NPT, R1/4, M20*1.5? 5. Electrical connection: DIN43650, Packard, Direct lead? 6. Order quantity: ?
